Product Summary

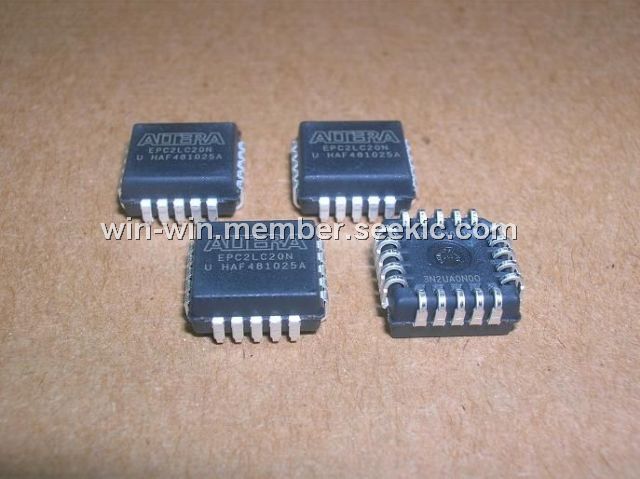

The EPC2LC20N is a Configuration Device for SRAM-Based LUT Devices.

Parametrics

EPC2LC20N absolute maximum ratings: (1)Supply voltage With respect to ground: –2.0 to 7.0 V; (2)DC input voltage With respect to ground: –2.0 to 7.0 V; (3)DC VCC or ground current: 50 mA; (4)DC output current, per pin: –25 to 25 mA; (5)Power dissipation: 250 mW; (6)Storage temperature No bias: –65 to 150 ℃; (7)Ambient temperature Under bias: –65 to 135 ℃; (8)Junction temperature Under bias: 135 ℃.

Features

EPC2LC20N features: (1)Serial device family for configuring APEX II, APEX 20K (including APEX 20K, APEX 20KC, and APEX 20KE), Mercury, ACEX 1K, and FLEX (FLEX 6000, FLEX 10KE, and FLEX 10KA) devices; (2)Easy-to-use 4-pin interface to APEX II, APEX 20K, Mercury, ACEX, and FLEX devices; (3)Low current during configuration and near-zero standby current; (4)5.0-V and 3.3-V operation.

Diagrams

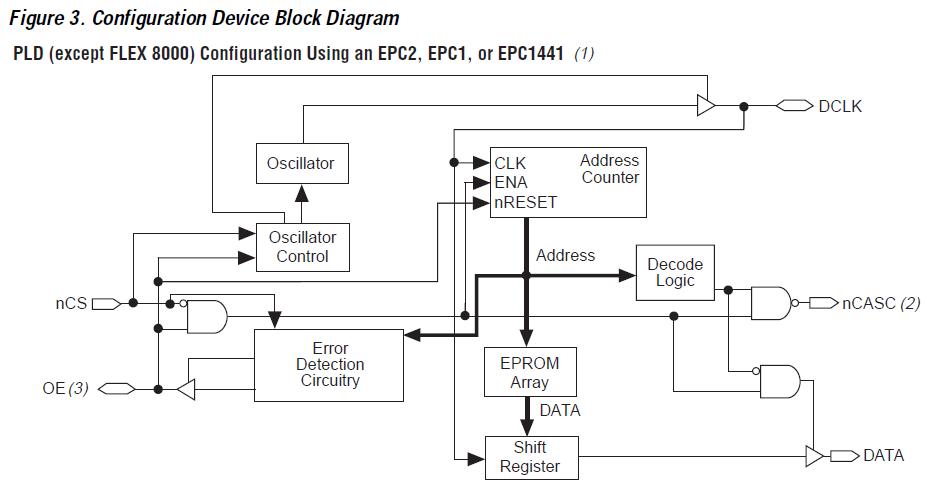

EPC2LC20N block diagram
