Product Summary

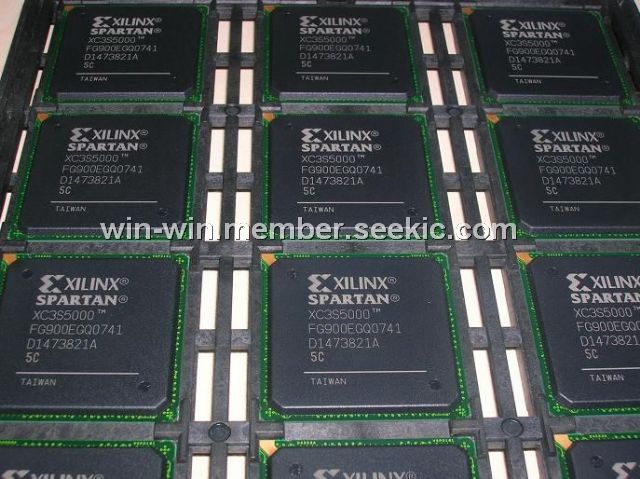

The XC3S5000-5FG900C is a spartan-3 field programmable gate array. The XC3S5000-5FG900C field-programmable gate array is specifically designed to meet the needs of high volume, cost-sensitive consumer electronic applications. The XC3S5000-5FG900C offers densities ranging from 50,000 to five million system gates. The XC3S5000-5FG900C builds on the success of the earlier Spartan-IIE family by increasing the amount of logic resources, the capacity of internal RAM, the total number of I/Os, and the overall level of performance as well as by improving clock management functions.
Parametrics
XC3S5000-5FG900C absolute maximum ratings: (1)VCCINT Internal supply voltage: -0.5 1.32 V; (2)VCCAUX Auxiliary supply voltage: -0.5 3.00 V; (3)VCCO Output driver supply voltage: -0.5 3.75 V; (4)VREF Input reference voltage: -0.5 VCCO+0.5 V; (5)TSOL Soldering temperature: 220 ℃; (6)TSTG Storage temperature: -65 150 ℃.
Features
XC3S5000-5FG900C features: (1)Revolutionary 90-nanometer process technology; (2)Very low cost, high-performance logic solution for high-volume, consumer-oriented applications; (3)Densities as high as 74,880 logic cells; (4)326 MHz system clock rate; (5)Three separate power supplies for the core (1.2V), I/Os (1.2V to 3.3V), and special functions (2.5V); (6)Abundant, flexible logic cells with registers; (7)Wide multiplexers; (8)Fast look-ahead carry logic; (9)Dedicated 18 x 18 multipliers; (10)JTAG logic compatible with IEEE 1149.1/1532 standards.

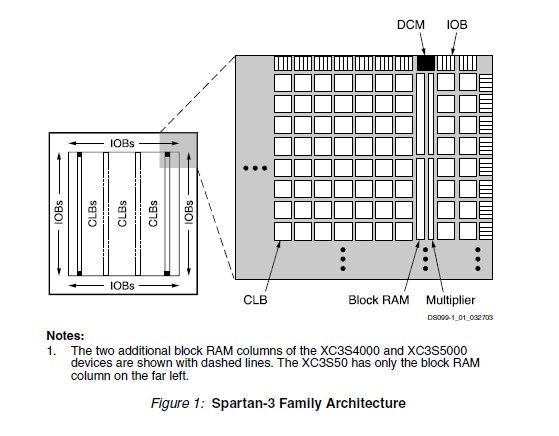

Diagrams
 |
