Product Summary

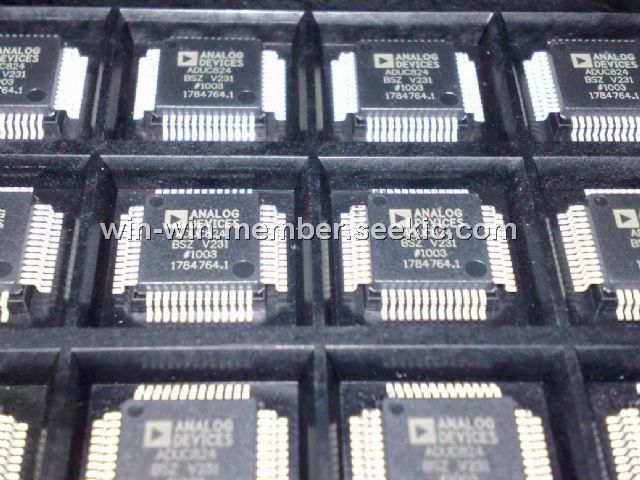

The ADUC824BSZ is a complete smart transducer front-end, integrating two high-resolution sigma delta ADCs, an 8-bit MCU, and program/data Flash/EE Memory on a single chip. This low power device accepts low-level signals directly from a transducer. The independent ADC(Primary and Auxiliary) ADUC824BSZ includes a temperature sensor and a PGA (allowing direct measurement of low-level signals). The ADC ADUC824BSZ with on-chip digital filtering is intended for the measurement of wide dynamic range, low-frequency signals, such as those in weigh scale, strain-gauge, pressure transducer, or temperature measurement applications.
Parametrics
ADUC824BSZ absolute maximum ratings: (1)AVDD to DGND: –0.3 V to +7 V; (2)DVDD to AGND: –0.3 V to +7 V; (3)DVDD to DGND: –0.3 V to +7 V; (4)AGND to DGND: –0.3 V to +0.3 V; (5)AVDD to DVDD: –2 V to +5 V; (6)Analog Input Voltage to AGND3: –0.3 V to AVDD + 0.3 V; (7)Reference Input Voltage to AGND: –0.3 V to AVDD + 0.3 V; (8)AIN/REFIN Current (Indefinite): 30 mA; (9)Digital Input Voltage to DGND:–0.3 V to DVDD + 0.3 V; (10)Digital Output Voltage to DGND: –0.3 V to DVDD + 0.3 V; (11)Operating Temperature Range: –40℃ to +85℃; (12)Storage Temperature Range: –65℃ to +150℃; (13)Junction Temperature: 150℃; (14)θJA Thermal Impedance: 90℃/W; (15)Lead Temperature, Soldering; (16)Vapor Phase (60 sec): 215℃; (17)Infrared (15 sec): 220℃.
Features
ADUC824BSZ features: (1)High Resolution Sigma-Delta ADCs; (2)Two Independent ADCs (16- and 24-Bit Resolution); (3)Programmable Gain Front End; (4)24-Bit No Missing Codes, Primary ADC; (5)13-Bit p-p Resolution @ 20 Hz, 20 mV Range; (6)18-Bit p-p Resolution @ 20 Hz, 2.56 V Range; (7)8 KB On-Chip Flash/EE Program Memory; (8)640 Bytes On-Chip Flash/EE Data Memory; (9)Flash/EE, 100 Year Retention, 100 Kcycles Endurance; (10)256 Bytes On-Chip Data RAM.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADUC824BSZ |
|
IC MCU 8K FLASH ADC/DAC 52MQFP |
Data Sheet |
|
|
||||||||||||||||
|
ADUC824BSZ-REEL |
|
IC MCU 8K FLASH ADC/DAC 52MQFP |
Data Sheet |
|
|
||||||||||||||||
