Product Summary

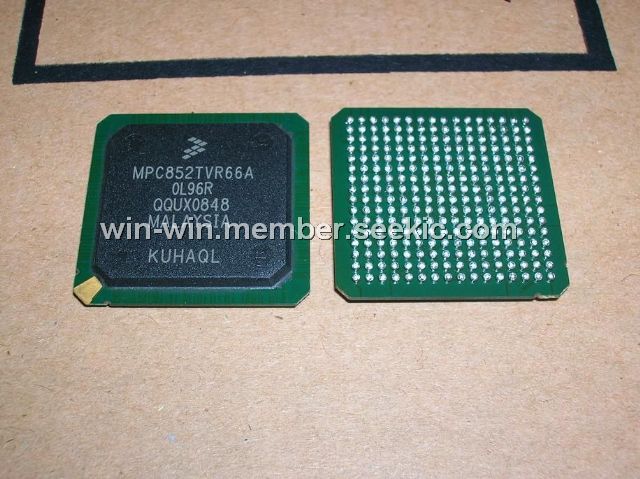

The MPC852TVR66A is a 0.18-micron derivative of the MPC860 PowerQUICC. family, and can operate up to 100 MHz on the MPC8xx core with a 66-MHz external bus. The MPC852TVR66A has a 1.8-V core and a 3.3-V I/O operation with 5-V TTL compatibility. The MPC852TVR66A integrated communications controller is a versatile one-chip integrated microprocessor and peripheral combination that can be used in a variety of controller applications. The MPC852TVR66A particularly excels in Ethernet control applications, including CPE equipment, Ethernet routers and hubs, VoIP clients, and WiFi access points.
Parametrics
MPC852TVR66A absolute maximum ratings: (1)VDDL (core voltage): – 0.3 to 3.4 V; (2)VDDH (I/O voltage): – 0.3 to 4 V; (3)VDDSYN: – 0.3 to 3.4 V; (4)Difference between VDDL to VDDSYN: 100 mV; (5)Input voltage Vin GND: – 0.3 to VDDH V; (6)Storage temperature range Tstg: – 55 to +150 ℃.
Features
MPC852TVR66A features: (1)The core performs branch prediction with conditional prefetch, without conditional execution.; (2)4-Kbyte data cache and 4-Kbyte instruction cache; (3)4-Kbyte instruction caches is two-way, set-associative with 128 sets; (4)4-Kbyte data cachesis two-way, set-associative with 128 sets; (5)Cache coherency for both instruction and data caches is maintained on 128-bit (4-word) cache blocks; (6)Caches are physically addressed, implement a least recently used (LRU) replacement algorithm, and are lockable on a cache block basis; (7)MMUs with 32-entry TLB, fully associative instruction, and data TLBs; (8)MMUs support multiple page sizes of 4, 16, and 512 Kbytes, and 8 Mbytes; 16 virtual address spaces, and 16 protection groups.

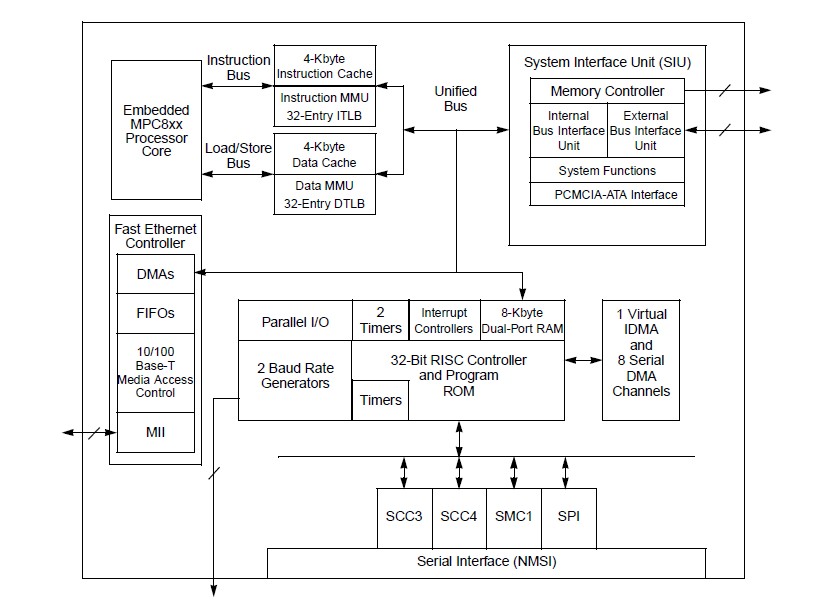

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MPC852TVR66A |
Freescale Semiconductor |
Microprocessors (MPU) Ethernet 66 MHz |
Data Sheet |
|
|
||||||||||||
