Product Summary

The MX128DW is a audio band scrambler. The applications of the MX128DW are: Cordless Telephones; Wireless PBX; Two-Way Radio; Leisure Radio.

Parametrics

MX128DW absolute maximum ratings: (1)Supply (VDD - VSS): -0.3 7.0 V; (2)Voltage on any pin to VSS: -0.3 VDD + 0.3 V; (3)Current in or out VDD and VSS pins: -30 +30 mA; (4)Current in or out of any other pin: -20 +20 mA.

Features

MX128DW features: (1)Full-Duplex Audio Processing; (2)On-Chip Filters; (3)Carrier Rejection >55dB; (4)Uses IF (10.24 MHz) Clock; (5)Excellent Audio Quality; (6)Low Power Operation (3.0V); (7)Battery Powered Portability.

Diagrams

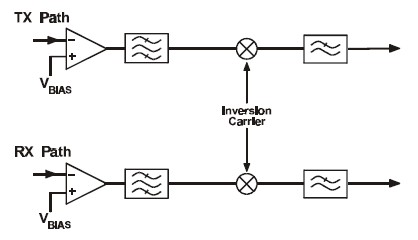

MX128DW block diagram
