Product Summary

The LM2596SX-5.0 regulator is a monolithic integrated circuit that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. The LM2596SX-5.0 is available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version. Requiring a minimum number of external component, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2596SX-5.0 operates at a switching frequency of 150 kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. Available in a standard 5-lead TO-220 package with several different lead bend options, and a 5-lead TO-263 surface mount package.

Parametrics

LM2596SX-5.0 absolute maximum ratings: (1)Maximum Supply Voltage 45V; (2)ON /OFF Pin Input Voltage -0.3 ≤ V ≤ +25V; (3)Feedback Pin Voltage -0.3 ≤ V ≤+25V; (4)Output Voltage to Ground; (5)(Steady State) -1V; (6)Power Dissipation Internally limited; (7)Storage Temperature Range -65℃ to +150℃; (8)Vapor Phase (60 sec.) +215℃; (9)Infrared (10 sec.) +245℃; (10)T Package (Soldering, 10 sec.) +260℃; (11)Maximum Junction Temperature +150℃.

Features

LM2596SX-5.0 features: (1)3.3V, 5V, 12V, and adjustable output versions; (2)Adjustable versiooutput voltage range, 1.2V to 37V ±4% max over line and load conditions; (3)Available iTO-220 and TO-263 packages; (4)Guaranteed 3A output load current; (5)Input voltage range up to 40V; (6)Requires only 4 external components; (7)Excellent line and load regulatiospecifications; (8)150 kHz fixed frequency internal oscillator; (9)TTL shutdowcapability; (10)Low power standby mode, IQ typically 80 μA; (11)High efficiency; (12)Uses readily available standard inductors; (13)Thermal shutdowand current limit protection.

Diagrams

LM2596SX-5.0 Typical Application

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

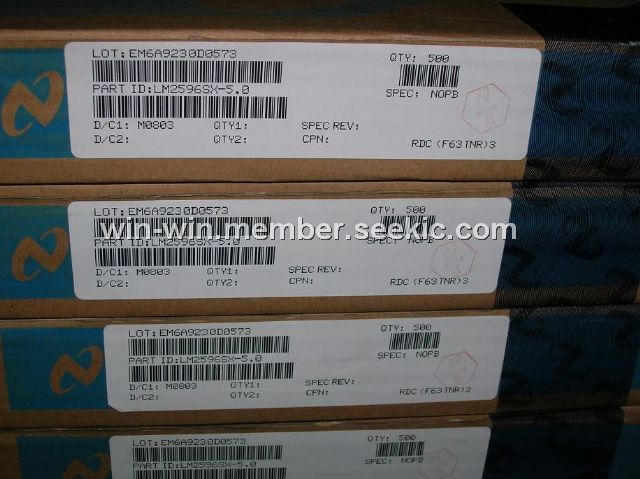

LM2596SX-5.0
LM2596SX-5.0

National Semiconductor (TI)

Switching Converters, Regulators & Controllers

Data Sheet

0-500: $1.84
500-1000: $1.48
1000-5000: $1.42
LM2596SX-5.0/NOPB
LM2596SX-5.0/NOPB

National Semiconductor (TI)

Switching Converters, Regulators & Controllers 150 KHZ 3A STEP-DOWN VLTG REG

Data Sheet

0-1: $3.11
1-25: $2.50
25-100: $2.27
100-250: $2.05
250-500: $1.84
