Product Summary

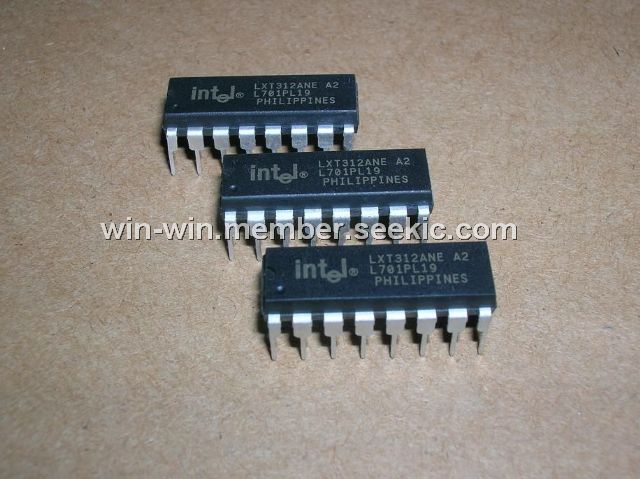

The LXT312ANEA2 is a low power T1 PCM repeaters/transceiver. The LXT312ANEA2 is an intergrated repeater circuit for T1 carrier system. The LXT312ANEA2 is a dual repeater/transceiver. It is designed to operate as regenerative repeater for 1.544 Mbps data rate PCM lines. Each includes all circuits required for a regenerative repeater system including the equalization network, automatic line build out, and a state of the art analog clock ectraction network tuned by an external crystal.
Parametrics
LXT312ANEA2 absolute maximum ratings: (1)Supply voltage, VCC: -0.3V to +6V; (2)Reveiver current, ICC: 100mA; (3)Driver voltage, VOH: 18V; (4)Operating temperature, TOP: -40 to +85℃; (5)Storage temperature, TST: -65 to +150℃.
Features
LXT312ANEA2 features: (1)On chip ALBO; (2)Low power consumption; (3)No tuning coil; (4)On chip lookback; (5)Recovered clock output; (6)0 to 36dB dynamic range; (7)Compatible with CB113/TA24 specifications; (8)Single 5V only CMOS techology.

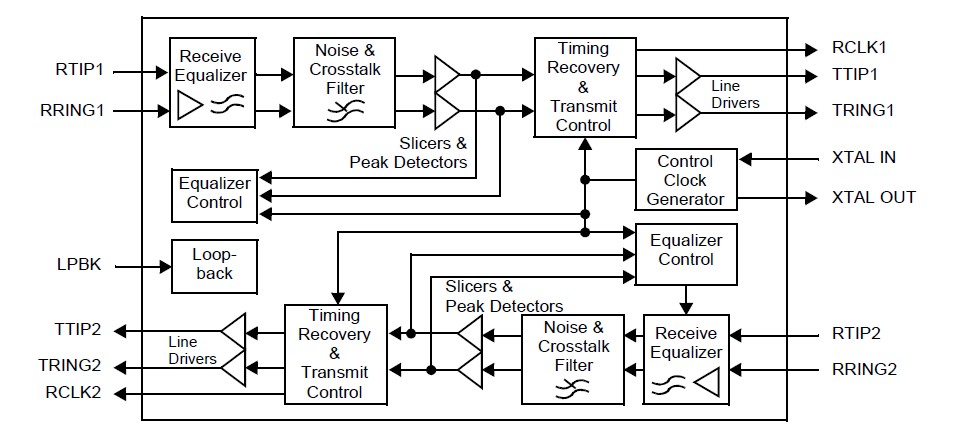

Diagrams
 |
