XC5VLX110T-1136C

Product Summary

The XC5VLX110T-1136C is a FPGA available in -3, -2, -1 speed grades, with -3 having the highest performance. The DC and AC characteristics of the XC5VLX110T-1136C are specified for both commercial and industrial grades. Except the operating temperature range or unless otherwise noted, all the DC and AC electrical parameters are the same for a particular speed grade (that is, the timing characteristics of a -1 speed grade industrial device are the same as for a -1 speed grade commercial device). However, only selected speed grades and/or devices might be available in the industrial range. All supply voltage and junction temperature specifications are representative of worst-case conditions. The parameters of the XC5VLX110T-1136C included are common to popular designs and typical applications.

Parametrics

XC5VLX110T-1136C absolute maximum ratings: (1)VCCINT Internal supply voltage relative to GND –0.5 to 1.1 V; (2)VCCAUX, Auxiliary supply voltage relative to GND: –0.5 to 3.0 V; (3)VCCO, Output drivers supply voltage relative to GND: –0.5 to 3.75 V; (4)VBATT, Key memory battery backup supply: –0.5 to 4.05 V; (5)VREF, Input reference voltage: –0.5 to 3.75 V; (6)VIN, 3.3V I/O input voltage relative to GND: –0.75 to 4.05 V; 2.5V or below I/O input voltage relative to GND: –0.75 to VCCO + 0.5 V; (7)VTS, Voltage applied to 3-state 3.3V output: –0.75 to 4.05 V; Voltage applied to 3-state 2.5V or below output: –0.75 to VCCO + 0.5 V; (8)TSTG, Storage temperature (ambient): –65 to 150℃; (9)TSOL, Maximum soldering temperature: +220℃; (10)TJ, Maximum junction temperature: +125℃.

Features

XC5VLX110T-1136C features: (1)VDRINT, Data retention VCCINT voltage (below which configuration data might be lost): 0.75 V; (2)VDRI, Data retention VCCAUX voltage (below which configuration data might be lost): 2.0 V; (3)IREF, VREF leakage current per pin: 10 μA; (4)IL, Input or output leakage current per pin (sample-tested): 10 μA; (5)CIN, Input capacitance (sample-tested): 8pF; (6)IRPD, Pad pull-down (when selected) @ VIN =2.5V: 5 to 110 μA; (7)IBATT, Battery supply current: 150 nA.

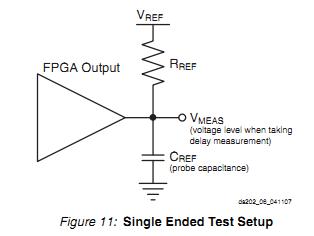

Diagrams
