Product Summary

The AD8512ARZ is a precision, very low noise, low input bias current, wide bandwidth jfet operational amplifier. The AD8512ARZ is single-, dual-, and quadprecision JFET amplifier that feature low offset voltage, input bias current, input voltage noise, and input current noise. The combination of low offsets, low noise, and very low input bias currents makes these amplifiers especially suitable for high impedance sensor amplification and precise current measurements using shunts. The combination of dc precision, low noise, and fast settling time results of the AD8512ARZ in superior accuracy in medical instruments, electronic measurement, and automated test equipment.

Parametrics

AD8512ARZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: ±VS; (3)Output Short-Circuit Duration to GND: Observe Derating Curves; (4)Storage Temperature Range R, RM Packages: -65℃ to +150℃; (5)Operating Temperature Range: -40℃ to +125℃; (6)Junction Temperature Range R, RM Packages: -65℃ to +150℃; (7)Lead Temperature Range (Soldering, 10 sec): 300℃; (8)Electrostatic Discharge (HBM): 2000 V.

Features

AD8512ARZ features: (1)Fast settling time: 500 ns to 0.1%; (2)Low offset voltage: 400 μV max; (3)Low TCVOS: 1 μV/℃ typ; (4)Low input bias current: 25 pA typ; (5)Dual-supply operation: ±5 V to ±15 V; (6)Low noise: 8 nV/√Hz; (7)Low distortion: 0.0005%; (8)No phase reversal; (9)Unity gain stable.

Diagrams

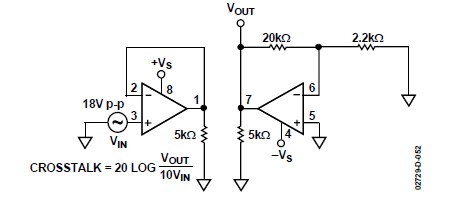

AD8512ARZ Crosstalk Test Circuit
